Neware Co.,Ltd located in Shenzhen,China. We primarily manufactures a complete range of battery testing systems for all the rechargeble battery as Li-ion, LiFePO4, Ni-MH,Ni-Cd,Lithium polymer battery
NEWARE is our registered brand. Neware testers are widely applied in battery testing fields such as electrode materials research,battery,large-scale battery formation,capability grading,battery internal resistance test,electrical vehicle battery test,etc…
We can customize the tester as customer's requirement from voltage 5V~500V,current 1mA~1000A
sigle cell tester pic:

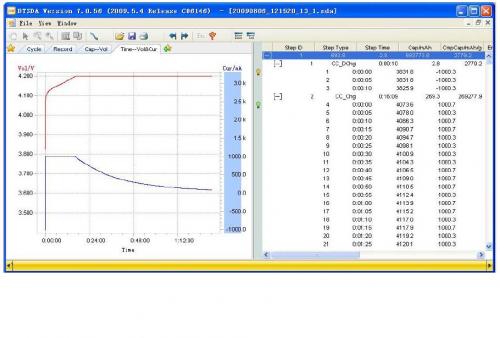

data analyzing software interface

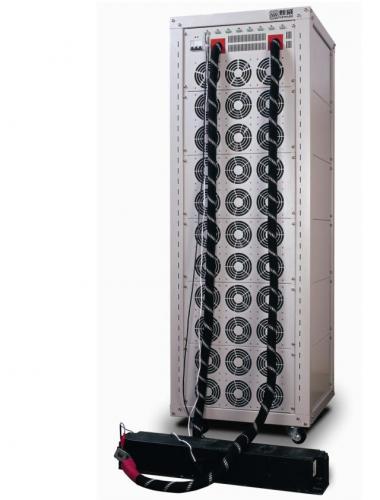

battery pack tester(meet large volate and current test need)
Equipment Comprehensive Performance
a,According to the international standard design, each channel of the system has an independent constant-current source and constant-voltage source
b,The internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect is remarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.
c,Measure adopts four wire method, decrease contact error, increase measure precision.
d,Each channel is independent;
e,With high efficient cooling system, Equipment can work 24 hours with full load.
f,Hardware adopts double loop control,can change from constant current to constant voltage without pinnacle,protect battery.
a,Each channel can program and test independently, after any “stop”, (including power failure) the work step has “continue” function, prevents the current data loss
b,Upper machine is compatible, can suit different versions of lower machine, and has the friendly man-machine interaction contact surface, ease of operation.
c,High speed data acquisition, catches the change detail of voltage and current precisely (16bit AD), with journal function.Formidable data and curve processing function; perfect report form function, supports four kind of report form types and sorts of report formats:
d,Formidable data and curve processing function; perfect report form function, supports four kind of report form types and sorts of report formats:
e,Sees namely the obtained report form: The data obviously derives.
f,Conventional report form: Derives the entire NDA data file
g,Lamination report form: The circulation level, the work step level, the record level data derives separately
h,Definition report form: The user can define and derives the template of the report form
i,The data and the curve may derive to EXCEL, TXT, can be edited and processed
Need more informaiton,visit our website www.neware.com.cn
or mail me:firstname.lastname@example.org (TEL:86-15814472201)
